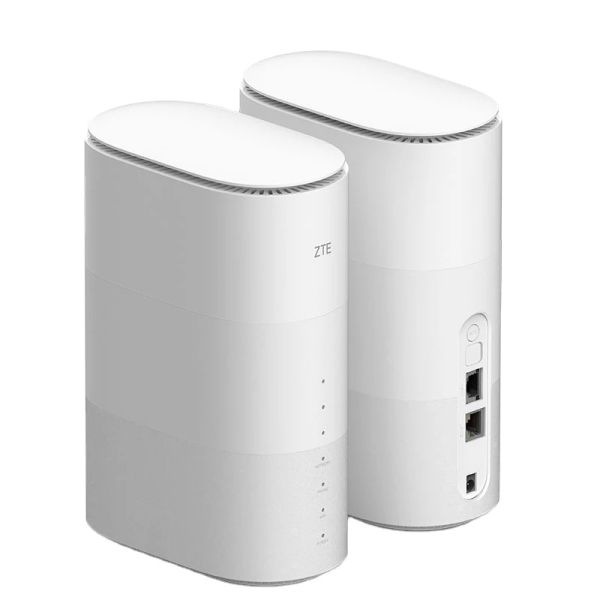

Brand new 5G high speed Indoor CPE WIFI6 5G NR+LTE EN-D Sub6G 5G Wireless Routerfor zte MC801A 5G wireless router
ZTE MC801A is a 5G Indoor WiFi router supporting the latest Wi-Fi 6 access technology, allowing multiple users to access the 5G network at the same time. ZTE 5G Indoor CPE MC801A supports both NSA & SA 5G Networks, compatible with mainstream 4G and 5G
standards. The device enables consumers to enjoy the advantages of ultra-fast 5G networks and 5G services, including immersive streaming, gaming and entertainment experience through virtual reality, augmented reality and 3D technologies.
ZTE MC801A 5G WiFi CPE Specifications:
* Category: 5G Router
* Communication Standard: 3GPP Release 15
* Chipset: Qual-comm 5G SDX55M
* CPU: A7 up to 1.4GHz
* Supported networks:
- Network technology: 5G NR, 3GPP Rel 15 5G NR SA & NSA option 3X
- 5G Network frequencies: Band 41/77/78/79
- Support 4G LTE Band: FDD B1/3/5/8/28 & TDD B34/38/39/40/41
3G WCDMA Band: 1/8
* Data rate speeds:
- 5G: DL: 3.8 Gbit/s and UL: 542 Mbit/s
- LTE Category 22 (DL: 2.4 Gbit/s and UL: 316 Mbit/s), 5CA, MIMO 4x4 for B1/3/7
- WCDMA: (up to 42Mbit/s)
* Modulation: DL 256QAM, UL 64QAM
* Wi-Fi: 802.11a/b/g/n/ac/ax(WiFi 6), dual-band, 4 x 4 MIMO
* WiFi 5GHz: up to 80MHz, 2 x 2 MIMO, up to 1.2Gb/s
* WiFi 2.4GHz: up to 40MHz, 2 x 2 MIMO, up to 575Mb/s
* WLAN encryption standards: WPA, WPA2, WPS
* Support up to 30 WiFi users simultaneously
* Functions: Blocklist, 3 SSIDs (2 Primary, 1 Guest)
* Interface:
- SIM card slot(NANO SIM) x 1
- Tel port(RJ11) x 1 (CSFB)
- WAN/LAN GE port * 1
- 1GE port(RJ45) * 1
- port x 1
* Administration console: Full access from a browser 192.168.0.1
* Power supply: 12V / 4A
* Button: Power button, reset button
* Cellular Antenna Ports: 2 slots for external antenna with TS-9 connector(Buy ZTE MC801 5G external antenna)
* SIM Card size type: NANO SIM
* Support OS: Linux
* Other functions: MAC address filtering, Wi-Fi encryption authentication, VPN, IPv6 support, VoLTE, DMZ, SSID, Guest SSID, Port
Forwarding, Watchdog Service, DHCP settings, network selection, APN settings etc.
* Dimension: 82 x 124x 70 mm
* Package content:
- ZTE 5G Router MC801A x 1
- 12V power adapter x 1
- Brief instruction
- LAN cable
